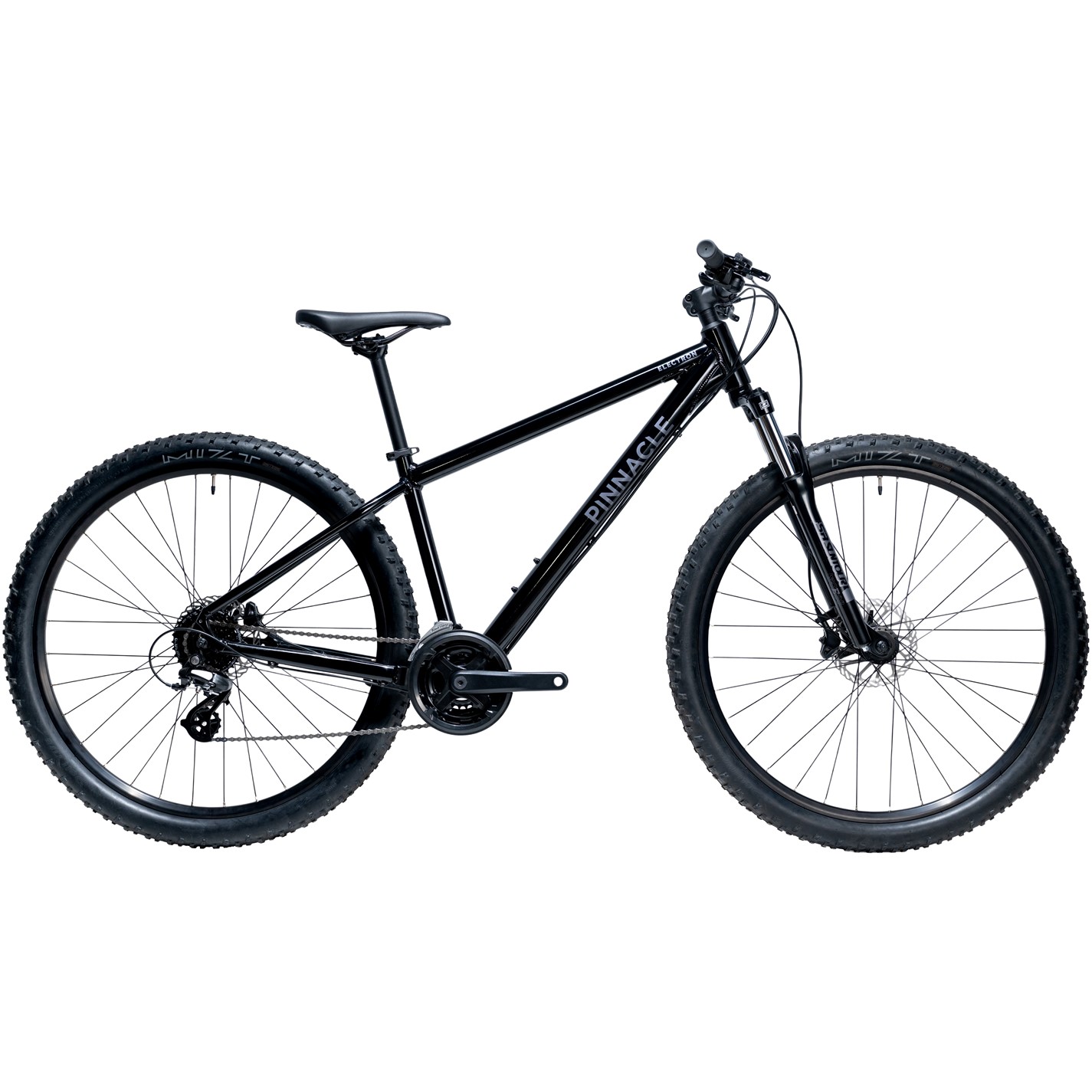

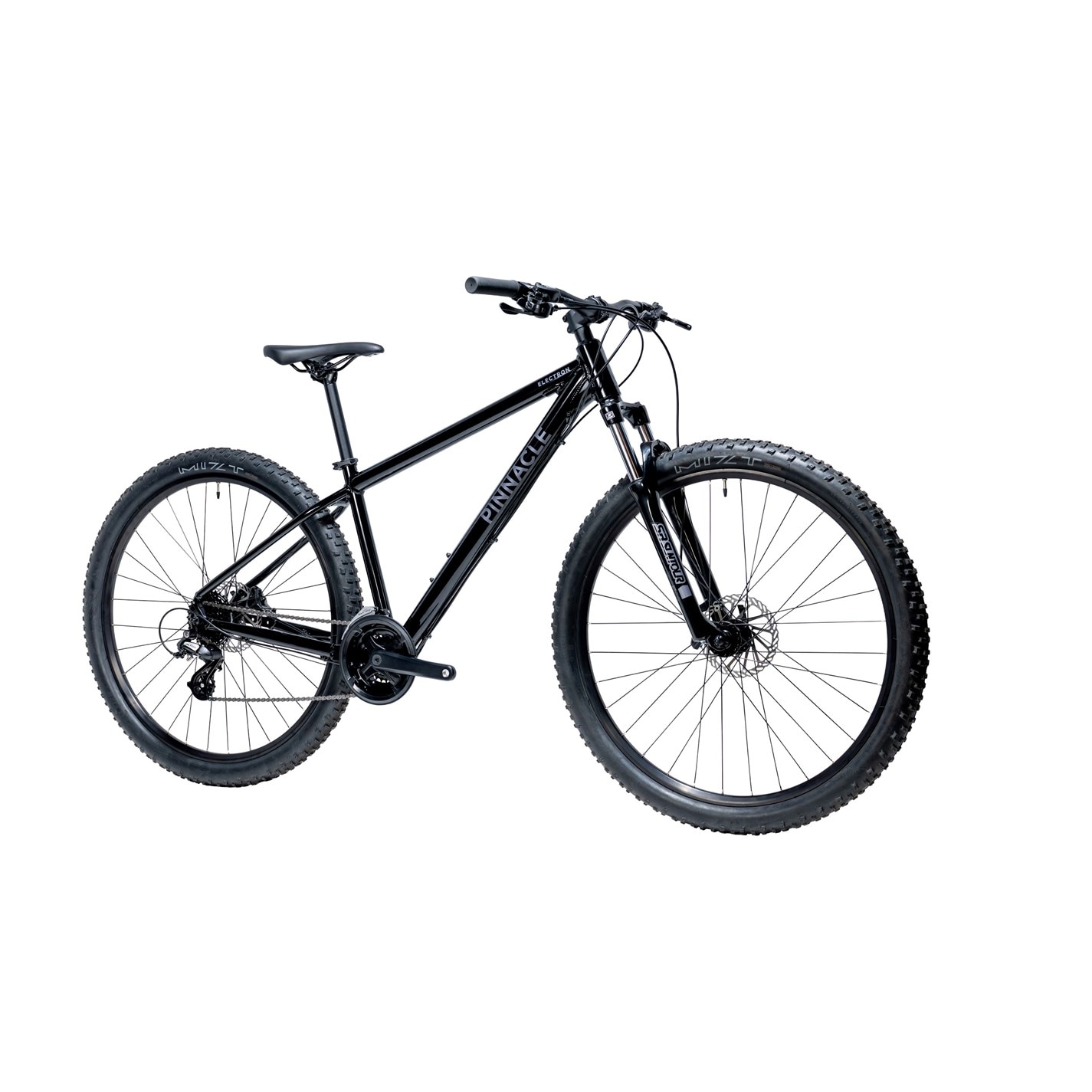

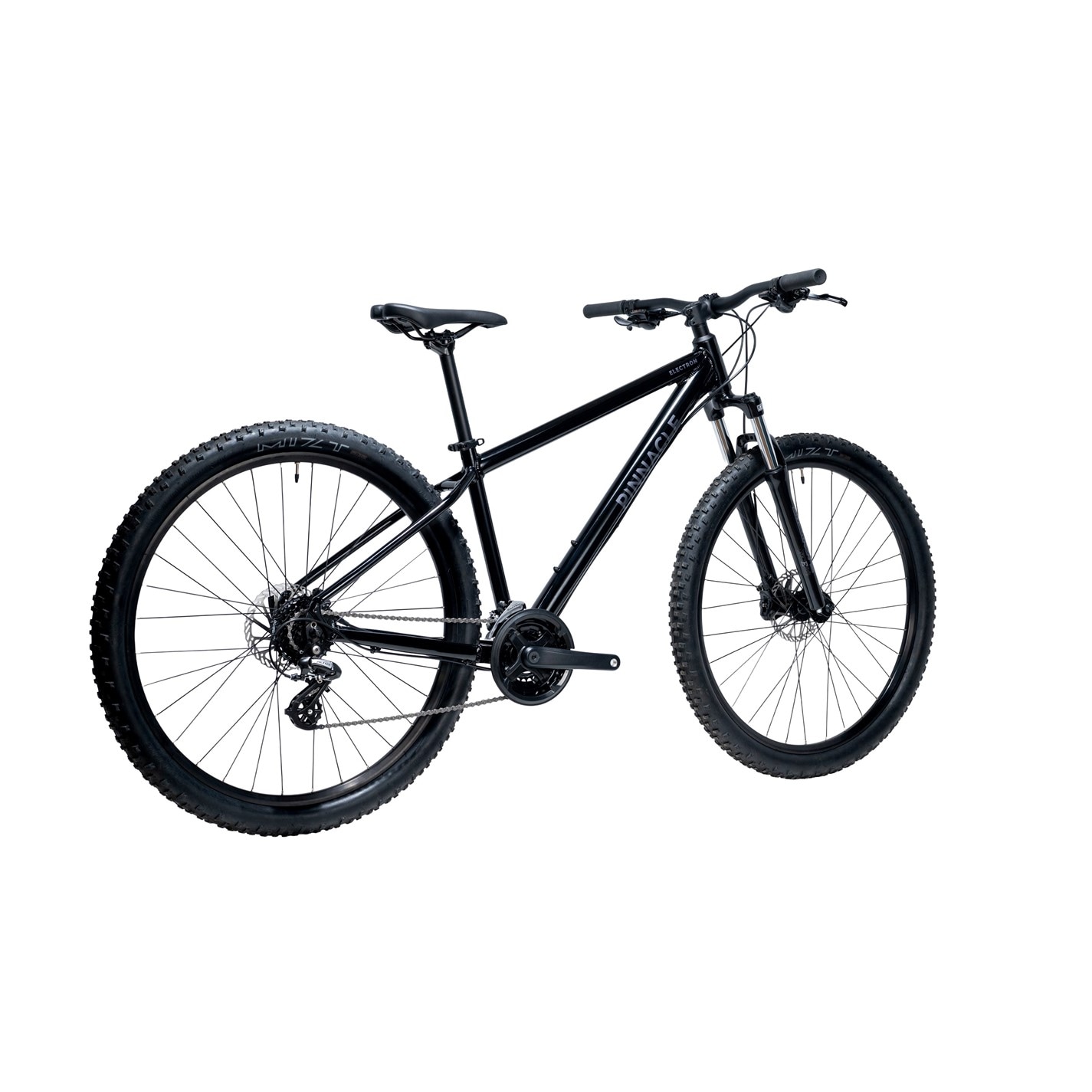

The bike that is your entry into the world of mountain biking. Built around an alloy frame with modern trail bike geometry, and a carefully chosen set of components that combine performance and reliability at an affordable price. This bike will handle trail centres, woodland singletrack, and learning the skills of mountain bike riding. Without breaking the bank.

For those riders looking to get into mountain biking with reliability, performance and cost in mind. With geometry matching much more expensive, modern trail bikes, this is the perfect bike to get going on those MTB trail adventures.

---

Key Features

• 6061 Alloy trail with modern mountain bike trail geometry
• Clarks M2 hydraulic disc brakes.
• Suntour XCE28 forks with 100mm of travel.
• Shimano Altus 2x8 speed drivetrain.

---

Specifications

Frameset

• Frame: 6061 alloy, 135m QR.

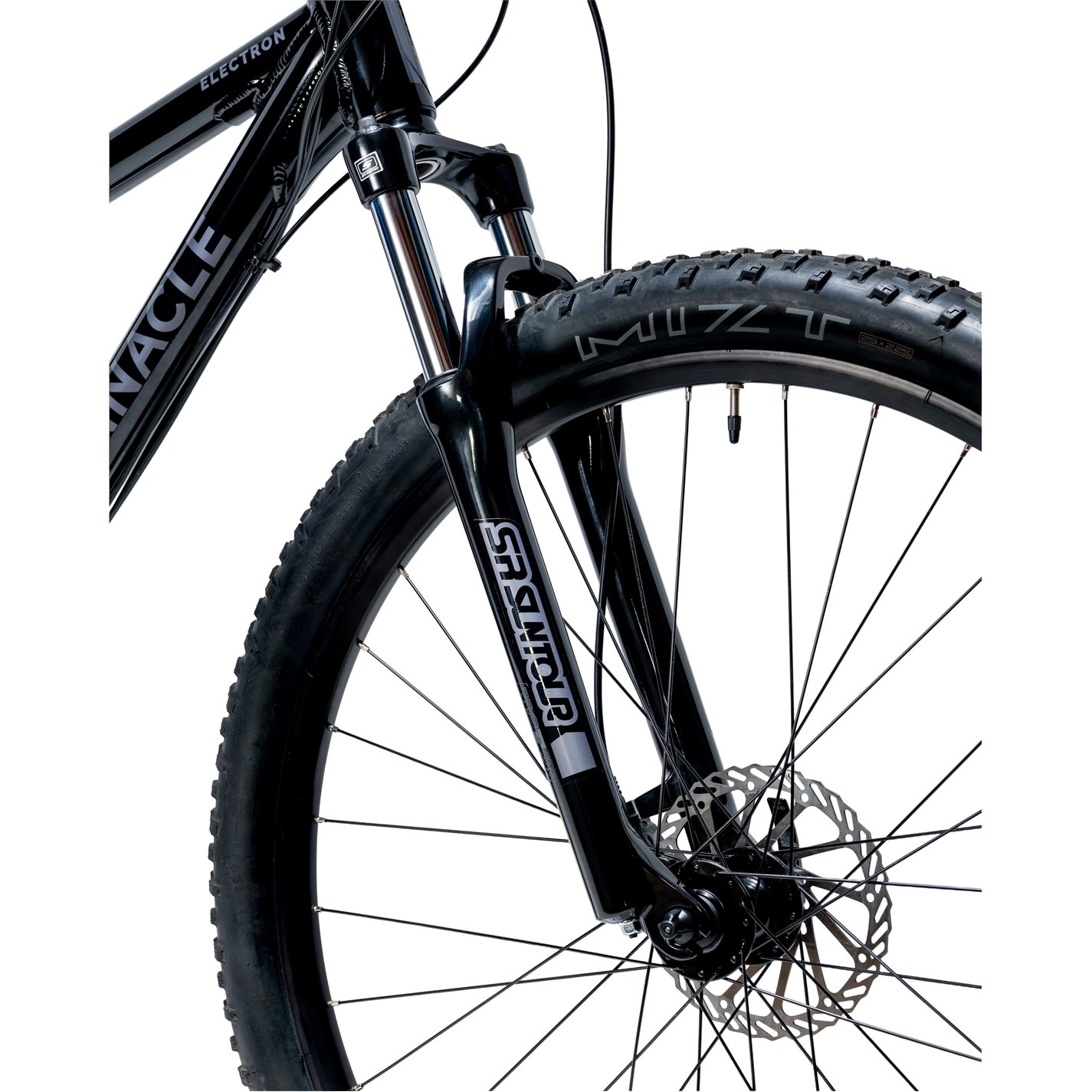

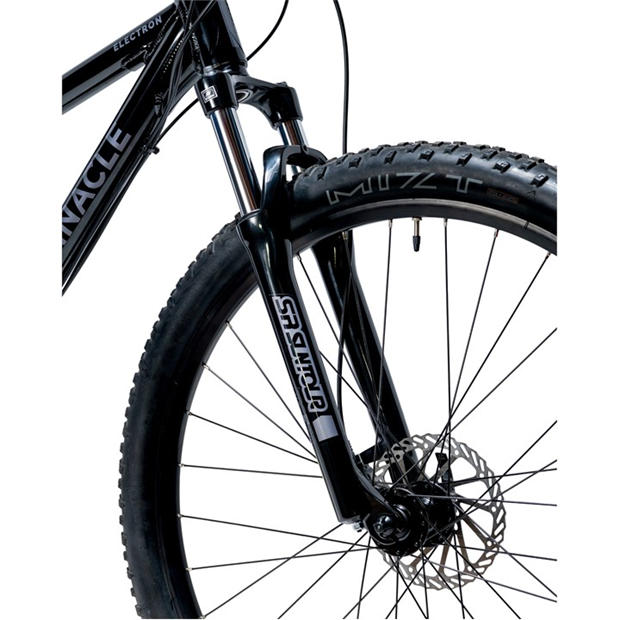

• Fork: Suntour XCE 28, 100mm travel, 28mm stanchion, 100mm QR.
• Rear Shock: N/A

Wheels

• Rims: 700c alloy double wall, presta valve.
• Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR
• Tyres: Deli Tire, 2.25 S: 27.5, M-XL: 29, wire bead.

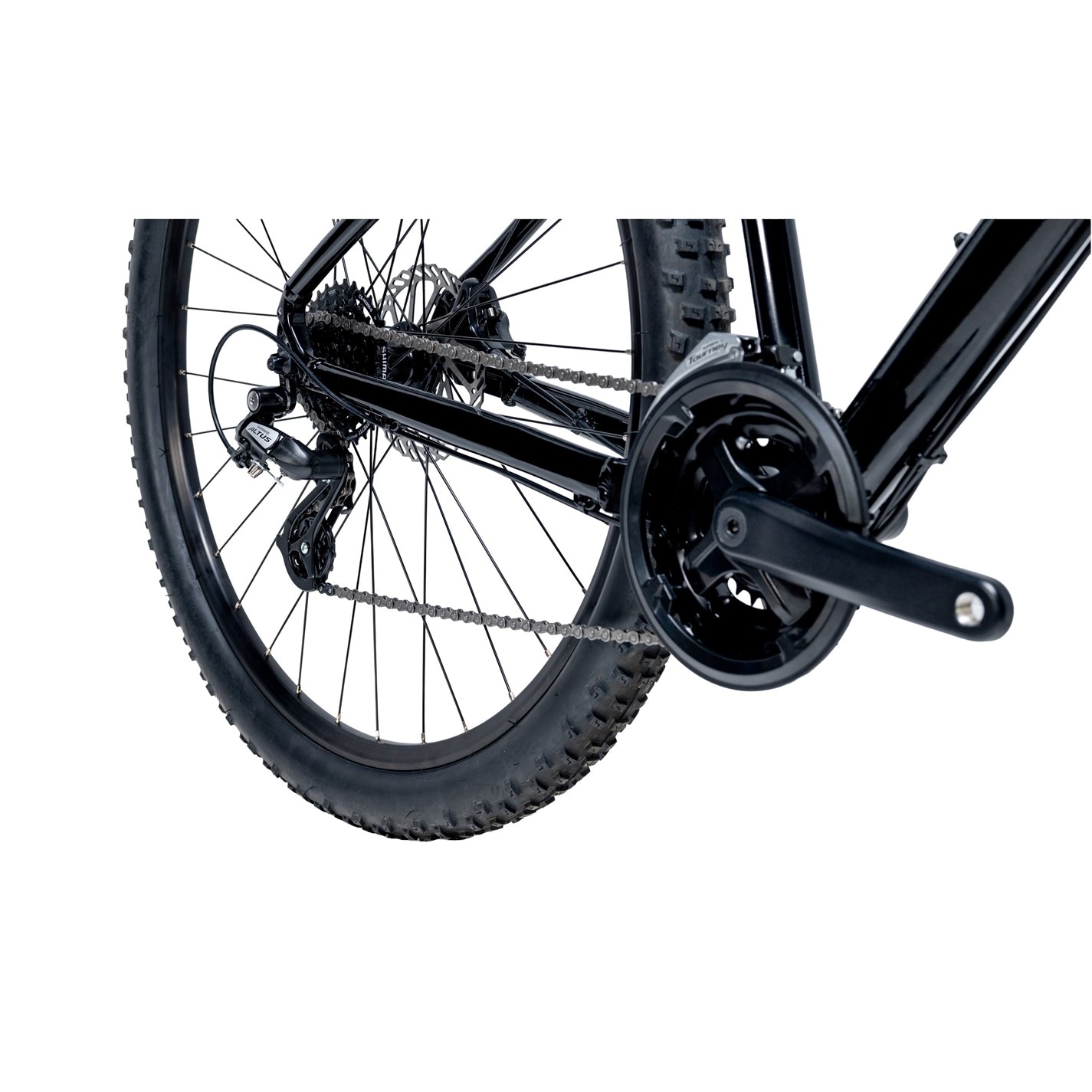

Drivetrain

• Crankset: Prowheel TB-CY10, 46x30, square taper.
• Shifters: Shimano Altus, M315, 2x8 speed, rapid fire.
• Rear Derailleur: Shimano Altus, M310-L, 8 speed.
• Front Derailleur: Shimano Altus, M315.
• Chain: KMC, Z-83.
• Cassette: Shimano Altus, HG31, 8 speed, 11-34t.
• Bottom Bracket: Alloy, sealed cartridge bearing, square taper, 73x122.5mm.

Components

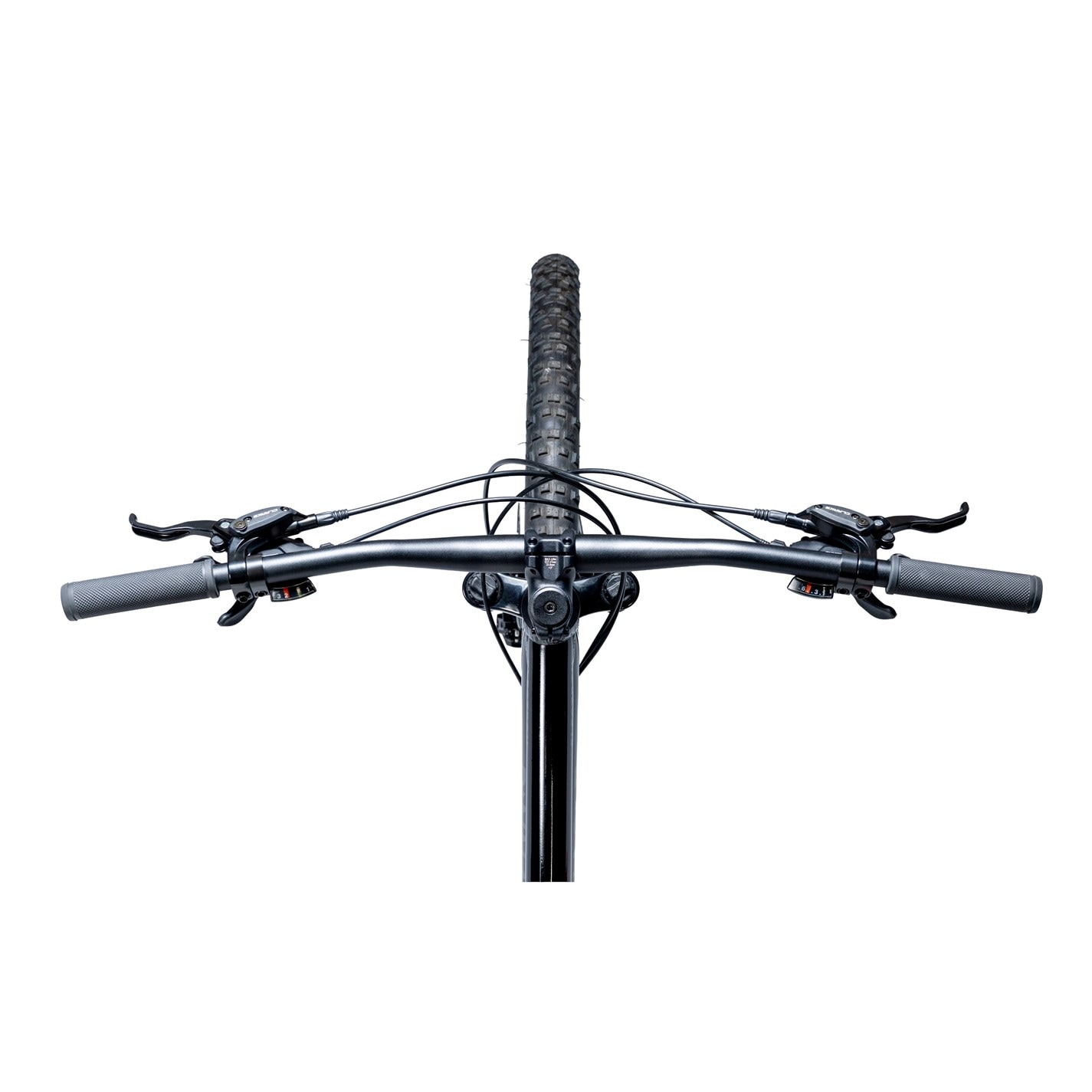

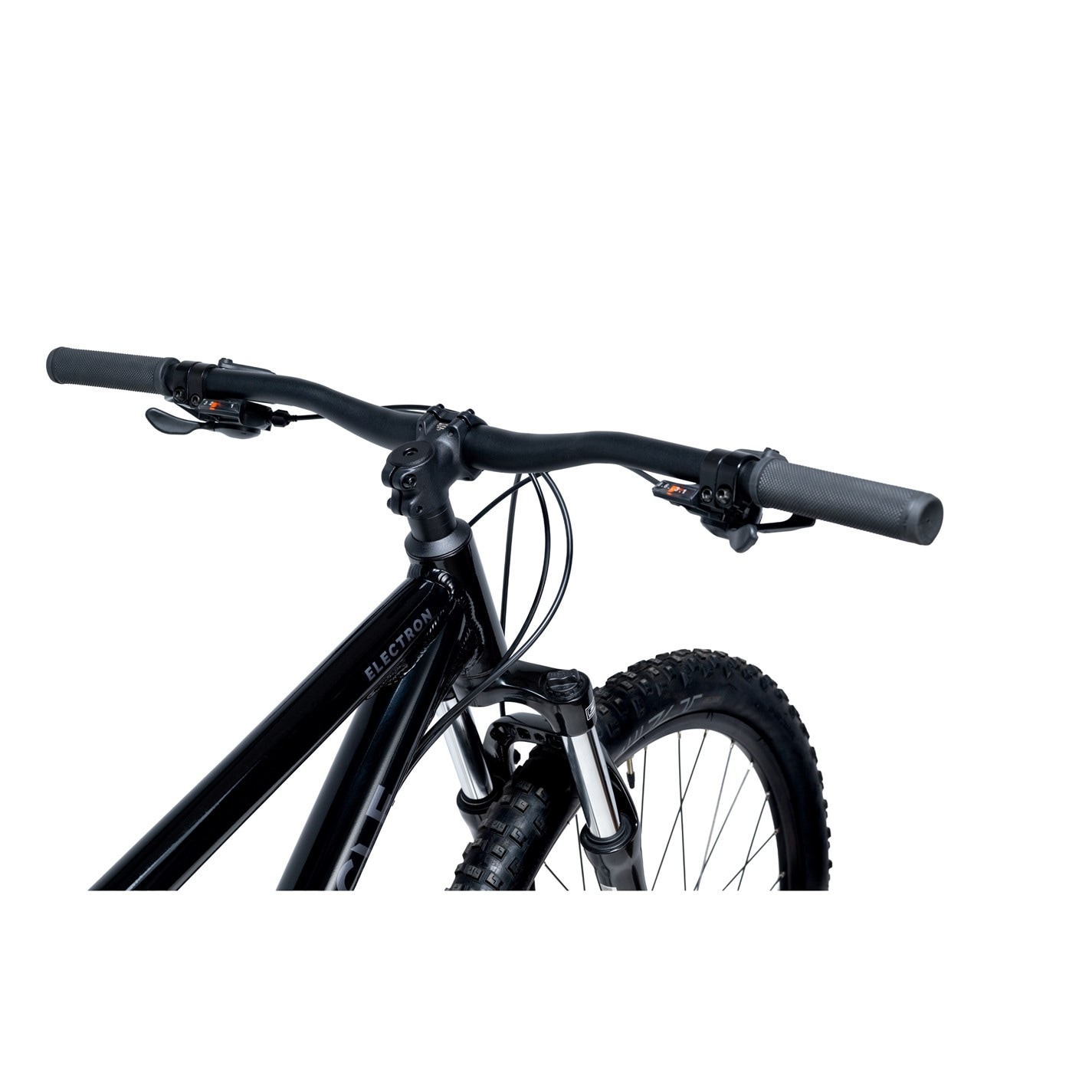

• Handlebar: Alloy, 31.8mm, 9 deg, 20mm rise, 760mm.
• Stem: Alloy, 31.8mm, 3 deg, 45mm.
• Grips: Velo, black, end plug.

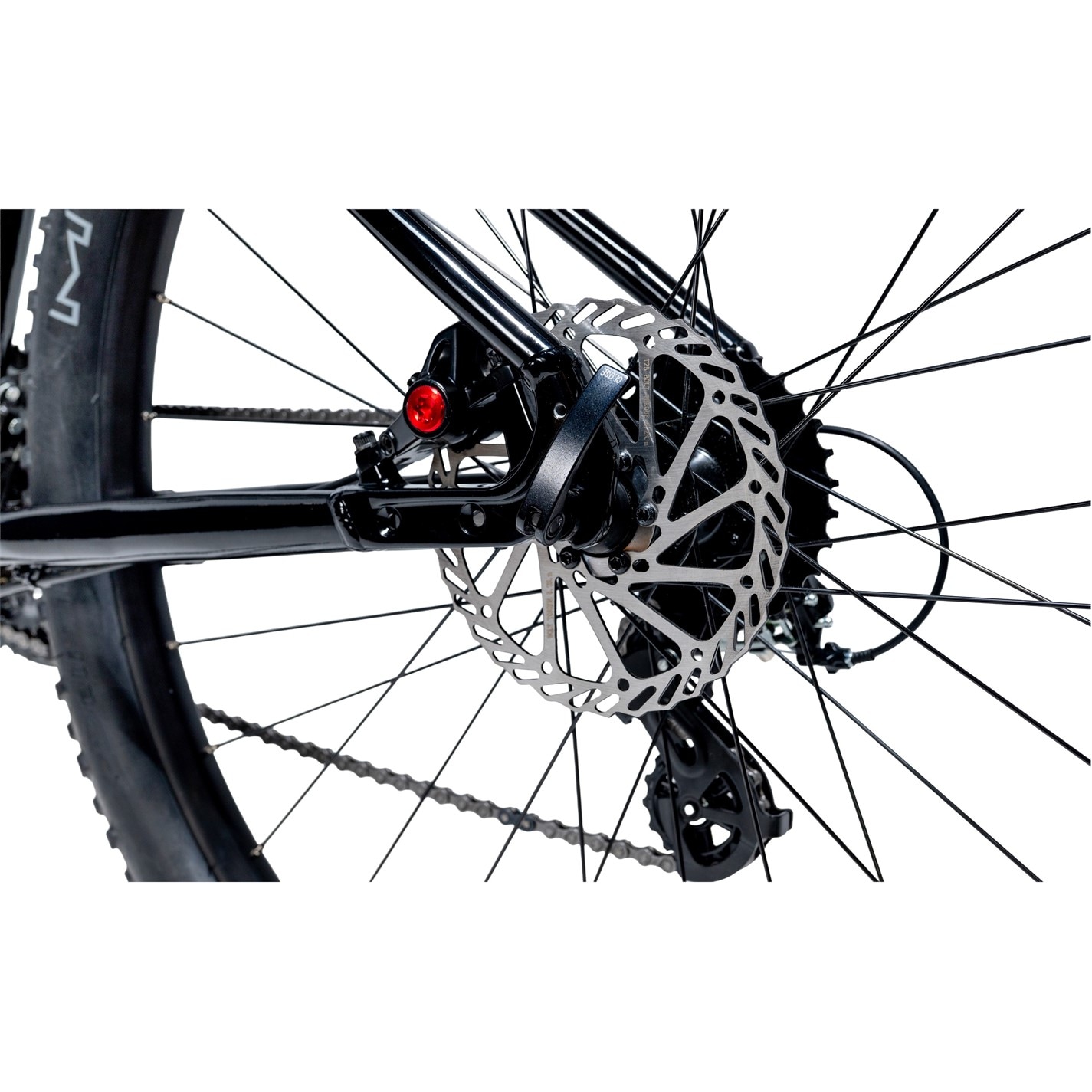

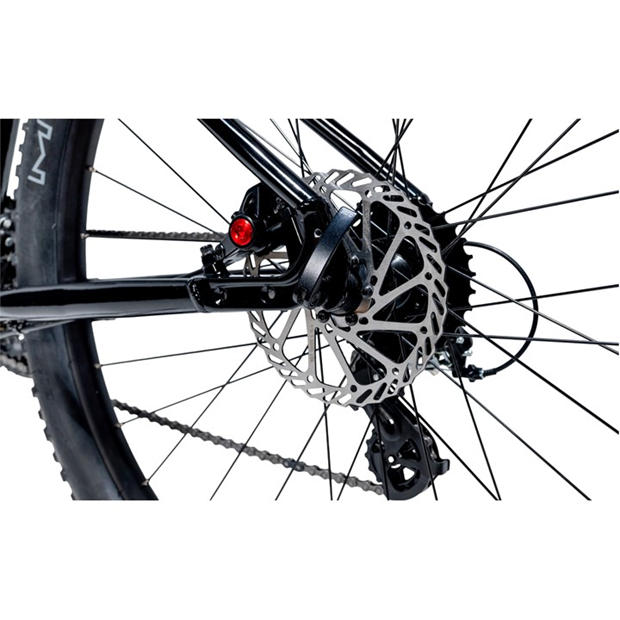

• Brakes: Clarks M2, hydraulic disc brakes, 160mm rotors.
• Saddle: Black, steel rail.
• Seatpost: Alloy, 27.2, 350mm, 15mm offset.

---

Electron

	S	M	L	XL
Rider Height (cm)	152 - 168	168 - 178	178 - 183	183 - 198
Inside Leg (cm)	71 - 78	76 - 84	78 - 86	84 - 91
